ThinkNode M7 Meshtastic PoE Gateway - 915 MHz
ThinkNode M7 Meshtastic PoE Gateway - 915 MHz
🇺🇸 US Inventory
📦 Fast US Shipping
🛠 Technical Support

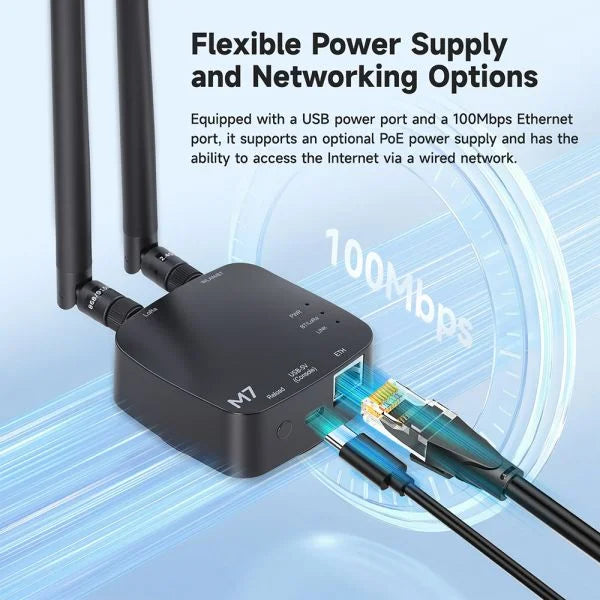

The ThinkNode M7 is a fixed-location Meshtastic gateway designed for building reliable, always-on LoRa mesh coverage. With 100 Mbps Ethernet and Power over Ethernet (PoE) support, the M7 can receive both network connectivity and power through a single Ethernet cable, making it ideal for permanent installations.

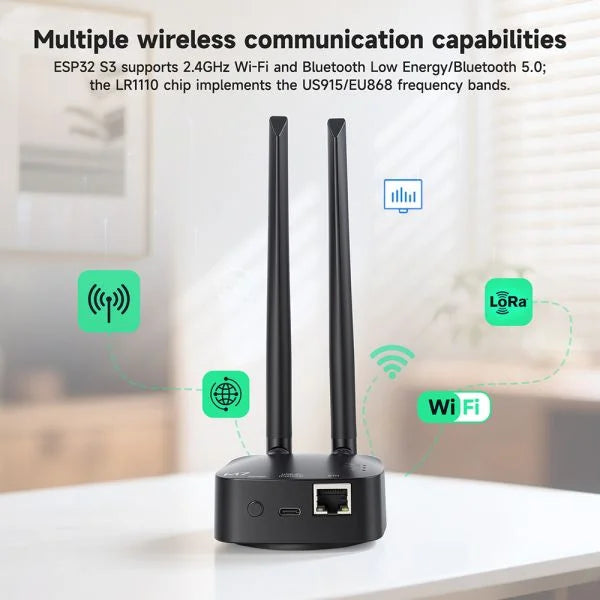

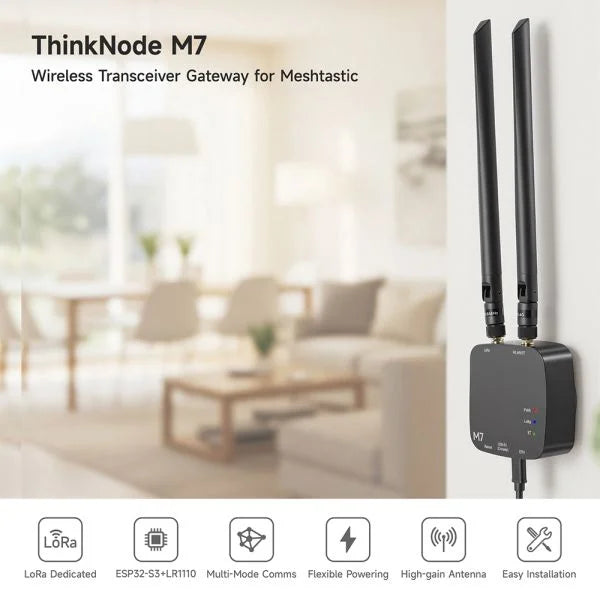

Powered by an ESP32-S3 and Semtech LR1110 LoRa radio, the M7 also supports Wi-Fi and Bluetooth connectivity and includes an external 915 MHz LoRa antenna. Its compact enclosure can be installed on a wall, desktop, or other fixed location as a dedicated Meshtastic node.
Key Features
- Meshtastic pre-installed, Meshcore supported
- 915 MHz LoRa
- Semtech LR1110 LoRa transceiver
- ESP32-S3 dual-core processor
- 10/100 Mbps Ethernet
- IEEE 802.3af PoE
- 2.4 GHz Wi-Fi
- Bluetooth 5.0 / BLE
- External LoRa antenna
- USB-C power option
- Wall, rear or desktop mounting
- Designed for fixed, always-on Meshtastic installations
Specifications
| Specification | ThinkNode M7 |
|---|---|
| Processor | ESP32-S3, dual-core up to 240 MHz |
| LoRa Radio | Semtech LR1110 |
| Frequency | 915 MHz |
| Ethernet | RJ45, 10/100 Mbps |
| PoE | IEEE 802.3af, 37–57V DC |
| Wi-Fi | 2.4 GHz 802.11 b/g/n |
| Bluetooth | Bluetooth 5.0 / BLE |
| USB | USB-C, 5V/1A power/data |
| LoRa Connector | RP-SMA female |
| Dimensions | 74 × 74 × 33 mm, excluding antenna |
| Weight | Approx. 80 g, excluding antenna |
| Operating Temperature | -20°C to +70°C |
| Firmware | Meshtastic |

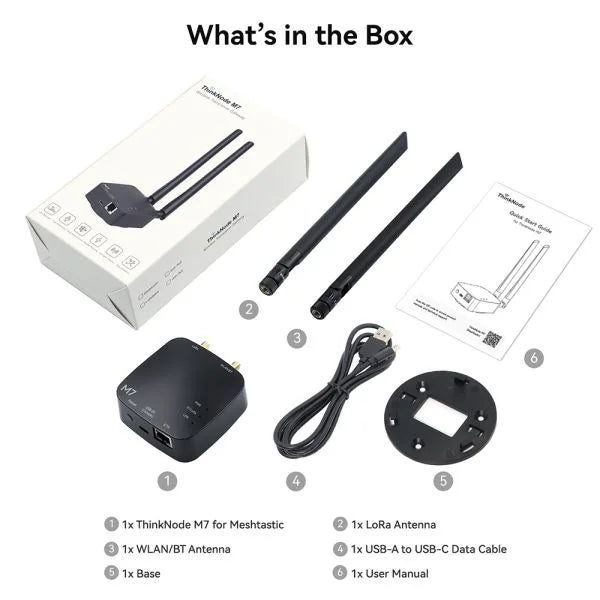

Package Includes: ThinkNode M7, LoRa antenna, WLAN/Bluetooth antenna, USB-A to USB-C cable, mounting base and user manual.
